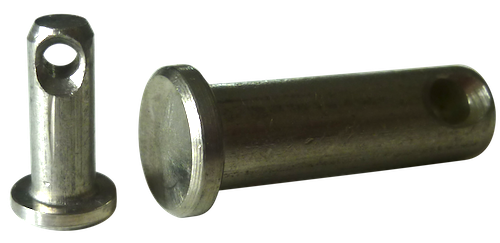

These clevis Pins are made from Stainless Steel of A2 Quality.
The corresponding cotter-pins can be found on the Cotter-Pin page.
Please choose one of the following dimensions.

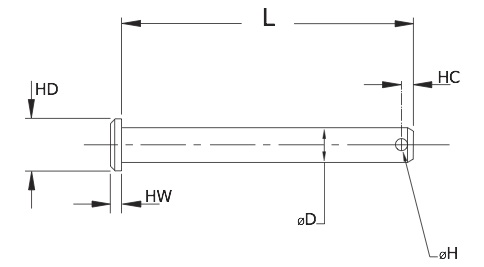

The Length is the complete length!!. Not from the head to the hole!
| Dia |
D |
3/16"
(4.76mm) |
1/4"
(6.35mm) |
5/16"
(7.94mm) |
| Head Dia |
HD |
5/16"
(7.94mm) |
3/8"
(9.53mm) |
7/16"
(11.11mm) |
| Head With |
HW |
1/16"
(1.59mm) |
3/32"
(2.38mm) |
3/32"
(2.38mm) |
| Hole Dia |
H |
0.078"
(1.98mm) |
0.078"
(1.98mm) |
0.104"
(2.64mm) |
| Hole Centre |
HC |
0.100"
(2.54mm) |
0.100"
(2.54mm) |
0.140"
(3.56mm) |
All given dimensions have to be understood as basic measurements.
Metric values are calculated from imperial values.
Available items:
Lenght |
Dia |
|
|
|
3/16" |
1/4" |
5/16" |
1/2" |
CLZ308S |
CLZ408 |
|
5/8" |
CLZ310S |
CLZ410S |
CLZ510 |
3/4" |
CLZ312S |
CLZ412S |
CLZ512S |
1" |
CLZ316S |
CLZ416S |
CLZ516S |
Available Options:
available ClevisPins:
